Highlights
Serial Number 0078

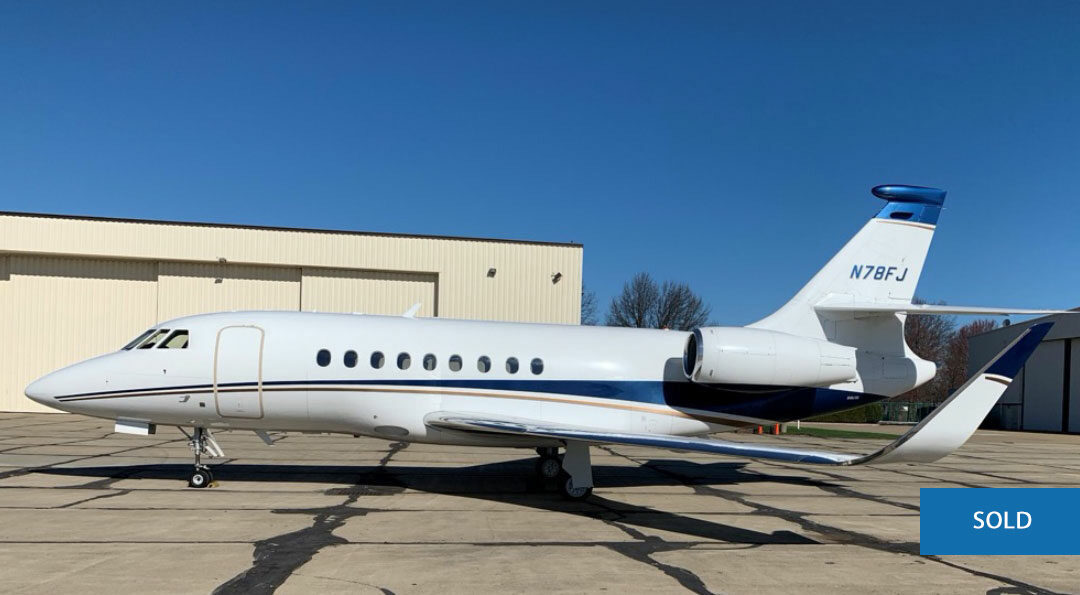

Registration N78FJ
8 Passenger Interior
Engines on CSP Gold
Airframes & Engines
TOTAL TIME AIRFRAME
4649.8
LANDINGS
3,130
CAMP Maintenance Tracking Program
ENGINE #1
GE CFE738-1-1B
Serial Number: P105309
Total Time: 4,488.7
Total Cycles: 3,045
ENGINE #2
GE CFE738-1-1B
Serial Number: P105280
Total Time: 4587.1
Total Cycles: 3,090
Engines Enrolled on Honeywell CSP Gold
Honeywell CSP Rate per Hour per Engine $541.67
AUXILIARY POWER UNIT
Model Honeywell GTCP 36-150 (F2M)
Serial Number: P-185
Total Time: 2,971
No APU Program
Avionics & Equipment
Collins Pro Line 4 Avionics Suite Four Tube EFIS
Honeywell Mark V EGPWS with Windshear
Dual Collins 6100 Flight Management Systems
Honeywell Dual Laseref IV IRS
Dual Collins Flight Management Computers 6000
Dual Collins AHC 85E AHRS
Dual Collins Control Display Units 6100
Collins Aerospace WXP-4220 Weather Radar
Dual Collins 4220 Radio Tuning Units
Collins TCAS 94 TTR 920 TCAS II with Change 7
Dual Collins VIR 432 Navigation with FM Immunity
Collins DBU 4100 Data Base Unit
Dual Collins VHF 422C Comms 8.33/Spacing
Coltec SELCAL
Dual Collins TDR 94D Mode S Transponders
Collins APS 4000 Autopilot
Dual Collins ADC 850C Air Data Computers
Honeywell AFIS Data Management Unit
Dual Collins GPS-4000S WAAS Upgrade
Honeywell Flight Data Recorder
Dual Collins DME 442
Honeywell Cockpit Voice Recorder
Dual Collins ADF 462
Socata ELT 97 (AF) 121.5/243.0/406 MHz
Dual Collins ALT 55B Radio Altimeters
Dual Collins HF 9000 HF Radios
L3 WX-1000 Stormscope
AVIONICS MODS/CERTIFICATIONS
GPS 4000S – WAAS
Cobham GPS/XM Antenna
Enhanced Surveillance Mode
ADS-B Out Compliant – DO260-B
RVSM Compliant
Collins MDC-4000/AMS-850 Checklist Editor
8.33 Spacing/FM Immunity Mods
Pilot/Copilot Accessory Power Supplies (16VDC)
Pilot & Copilots IPADS
XM Weather on IPADS
ENTERTAINMENT
Baker LH Forward Bulkhead Monitor
XM Radio – with Remote
(1) 5.6” Plug-in LCD Monitor
Airshow 400
Airshow Cockpit Controller
Remote IR Sensor
JVC KD-S690 CD Player with Remote
VIP Seat with Cabin Switching – Temperature Control
Panasonic DVD Player A300MU with Remote
MFG Hot Cup
Baker Headphone Ports/Controls
115 VAC Outlets Cabin/Galley/Lavatory
ADDITIONAL EQUIPMENT/UPGRADES
Increase Gross Weight 36,500 MTOW

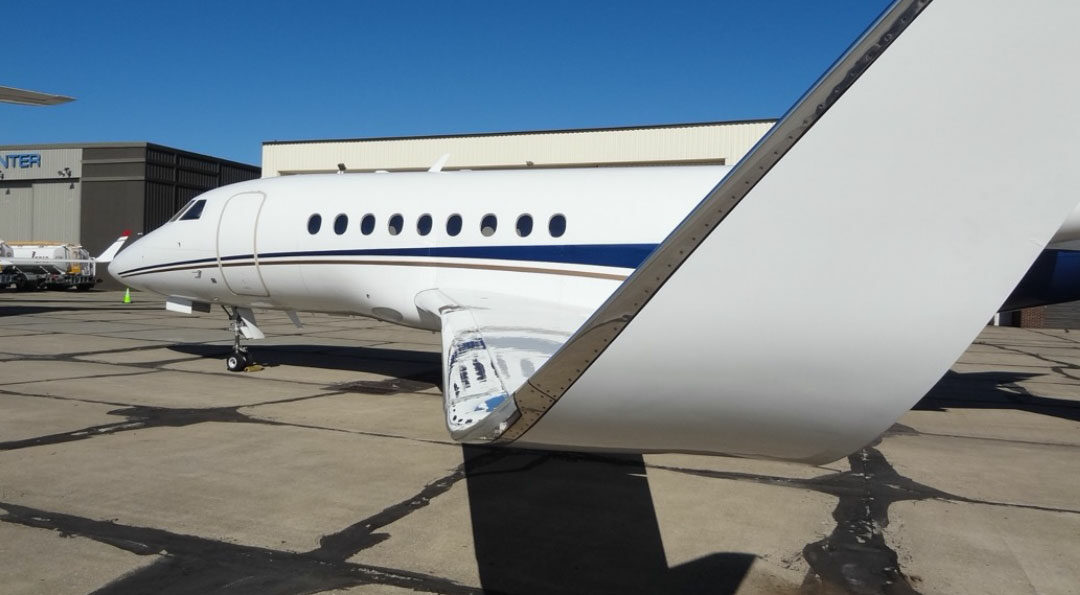

Aviation Partners Blended Winglets
Increased Maximum Landing Weight 34,500 lbs
Jump Seat
Third Crew Member Seat with O2/Audio
Dual Davtron Clocks
Passenger Audio Briefing System
Fabric Engine Covers
Portable Breathing Equipment
Smoke Hoods
Rechargable Flashlight Receptacles
First Aid Kit
APU Firewall Change/Upgrade
Star Hot Cup
FADEC Upgraded V6.5
SB F2000-358 Dry Bay Mod Completed
Goldstar MA-7005ST Microwave Oven
Catering Storage
TIA Coffee Maker
Dual Magazine Racks
Two Ice Drawers
Galley Pop-Out Work Surface
Brother InteliiFAX 775 Fax Machine
Securaplane Lead Acid Main Aircraft Battery
Mounted Tow Bar
Mounted Portable Ladder
BOSE Auxiliary Cockpit Audio System
Cabin/Lavatory Master Power Switch System
Life Raft
Interior & Exterior
Refurbished July 22, 2005 Duncan Aviation

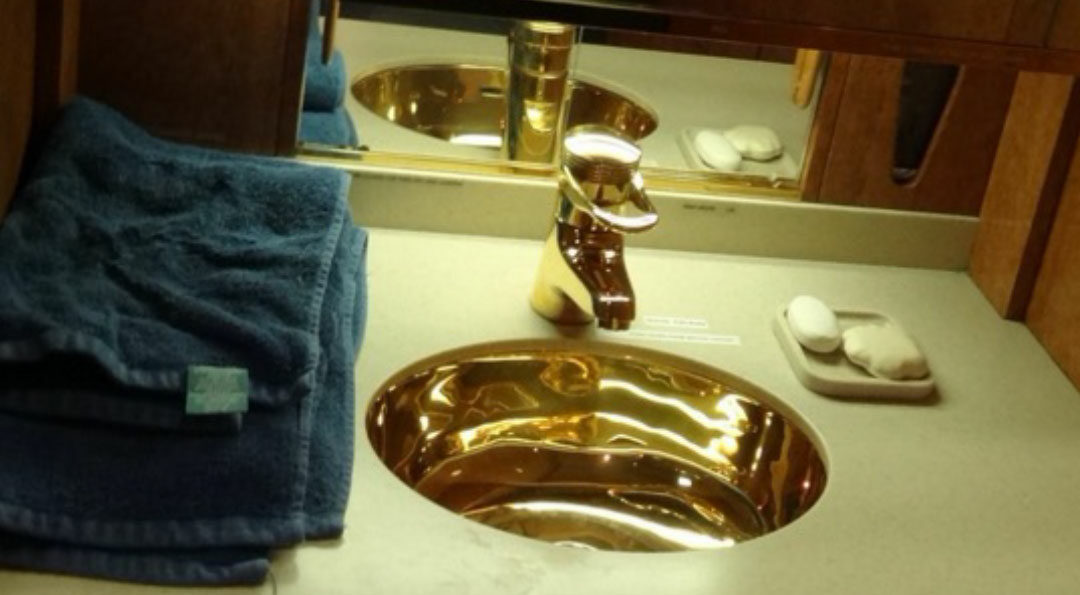

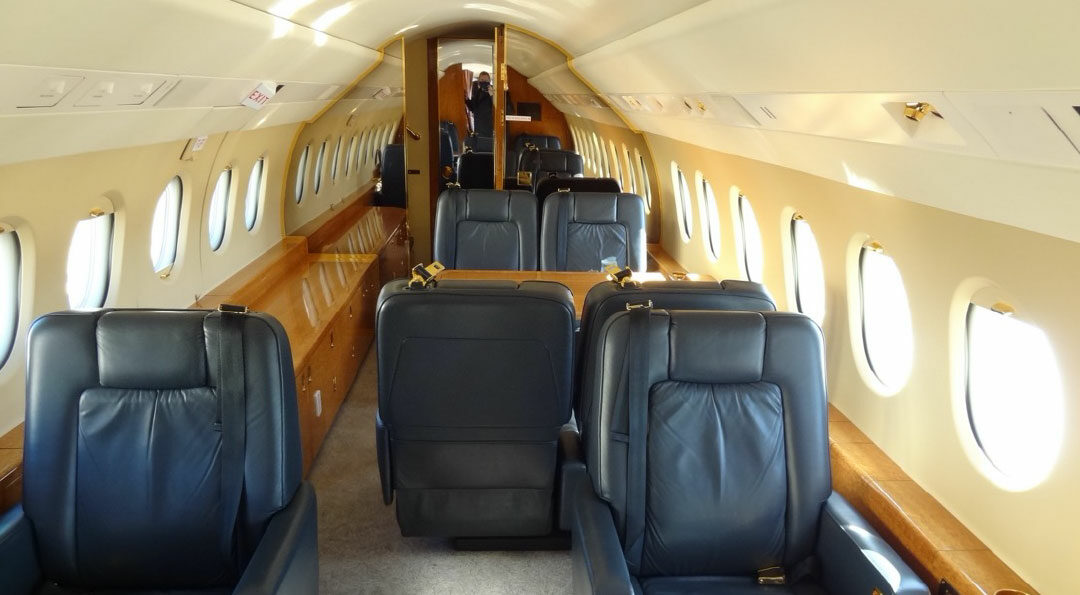

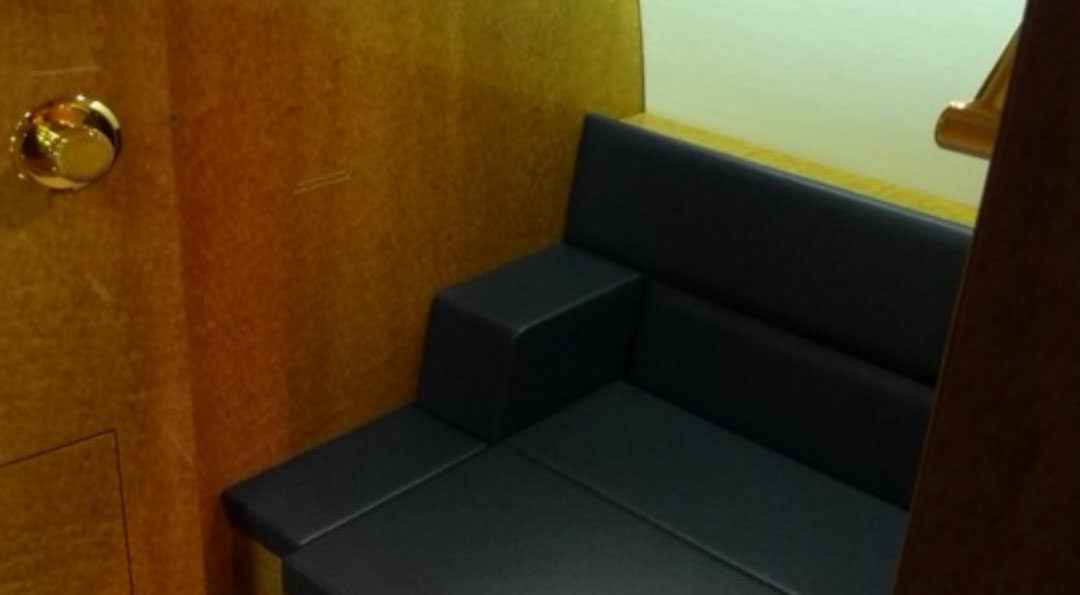

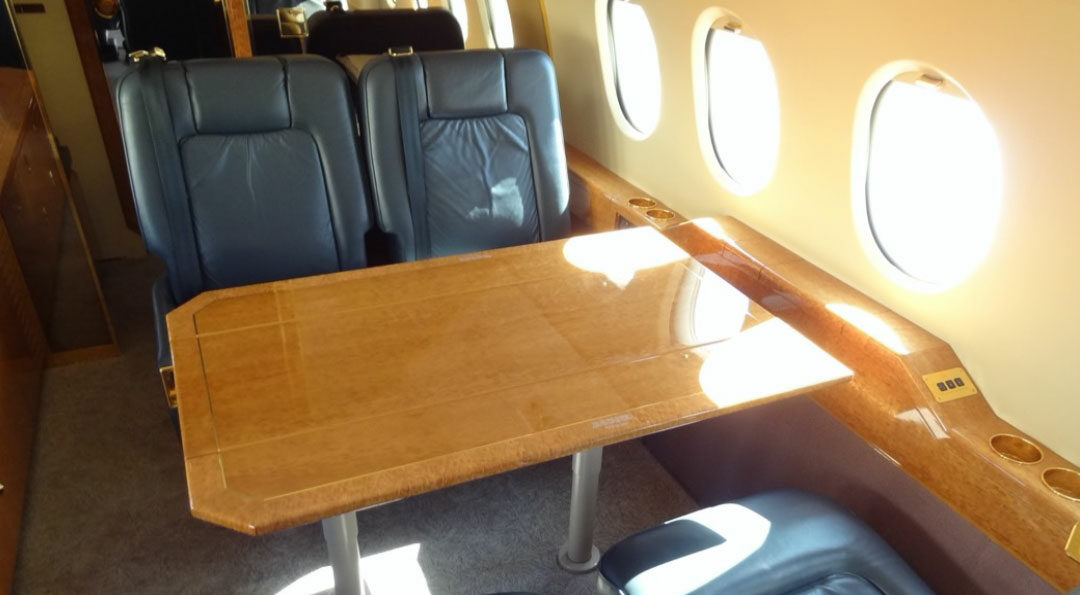

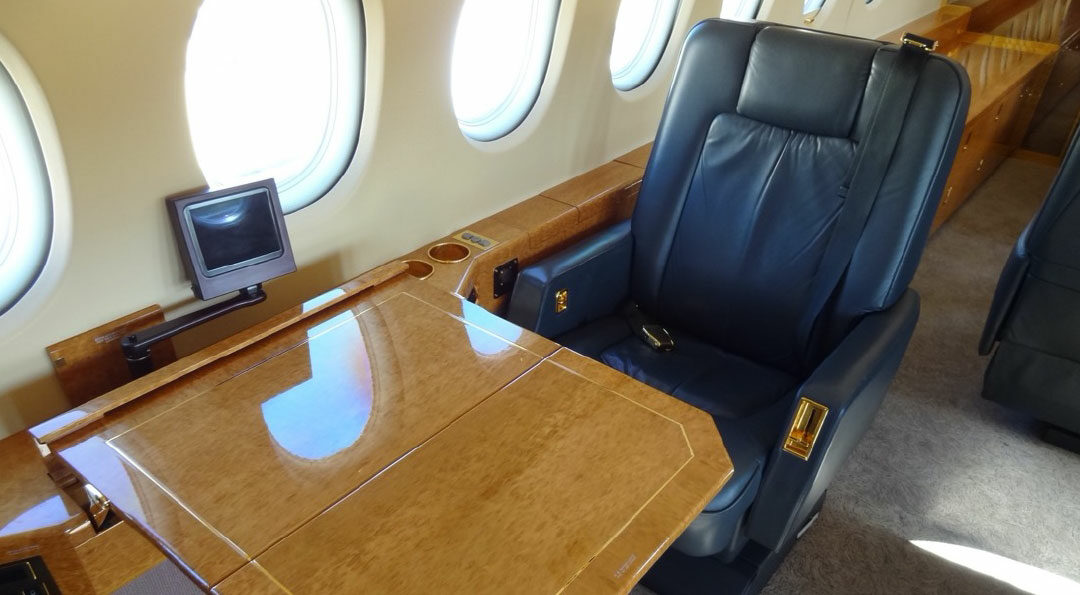

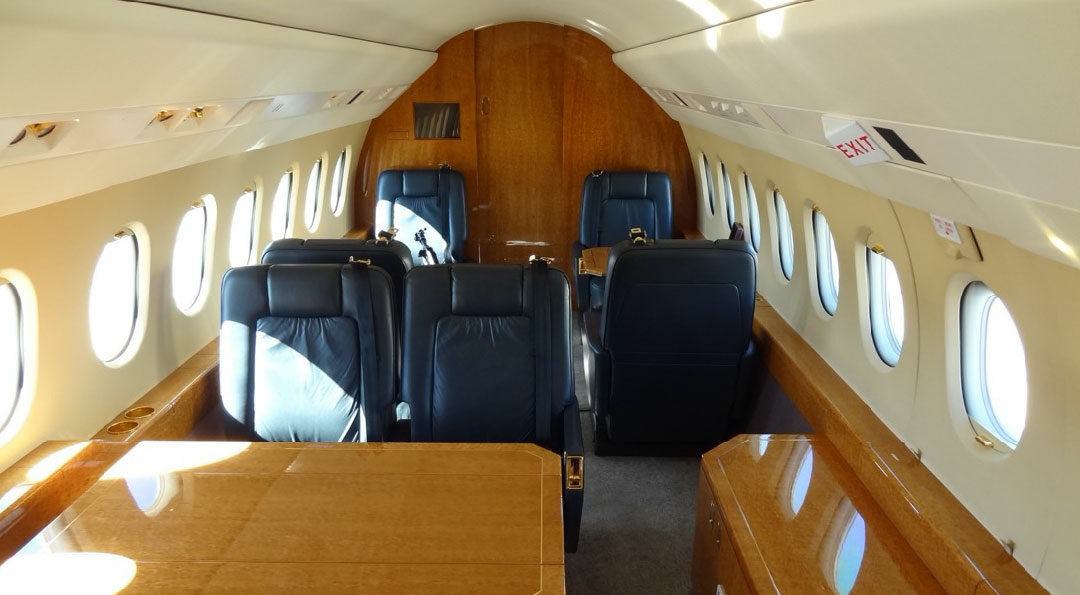

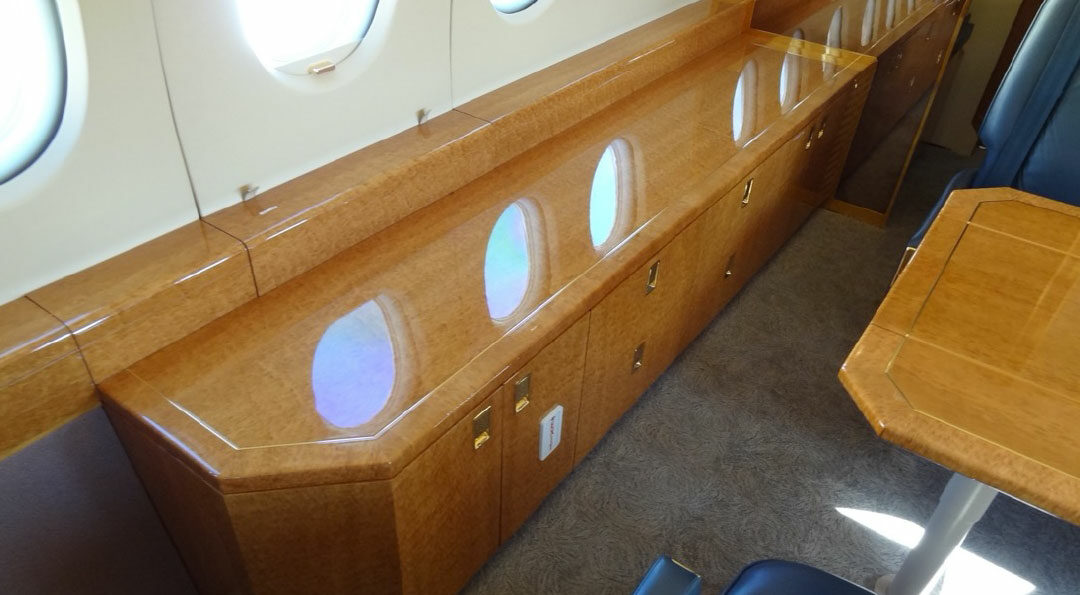

Eight (8) Passenger Fireblocked Interior Configuration with Forward Four Place Club Seating – VIP Seat – Dual Executive Tables – Three (3) 115 Volt AC Cabin Outlets – Aft Four Place Conference Group with Conference/Dining Table – RH Aft Credenza with Brother InteliiFAX 775 Fax Machine, Raft, Storage – Aft LH VIP Seat at Conference Group – Aft Lavatory with External Servicing – Vanity – Sink with Hot/Cold Water – Lavatory Storage Drawers – Aft Baggage Compartment

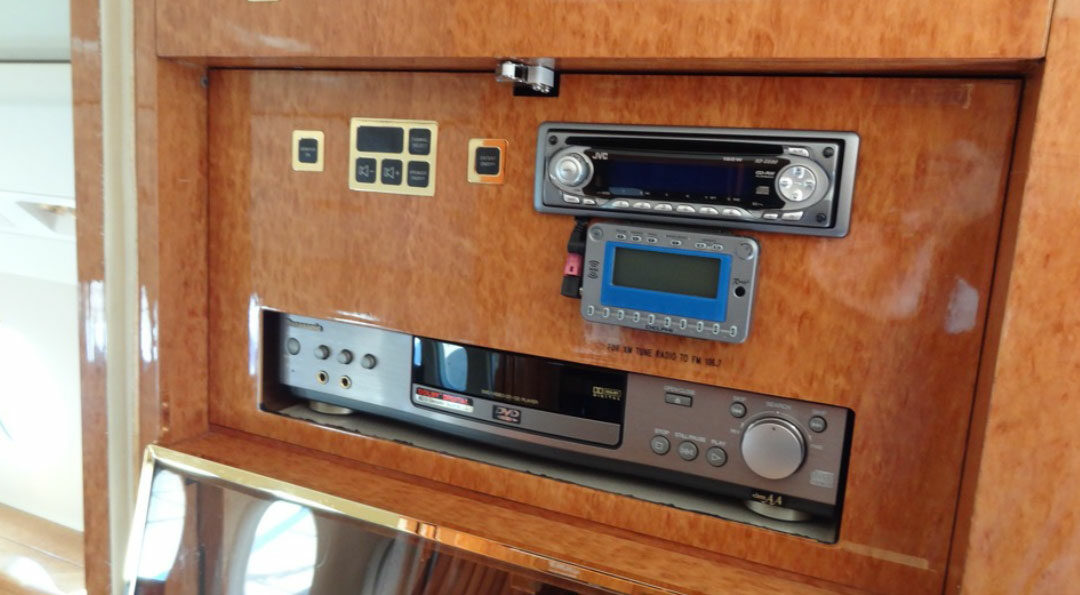

In the LH Forward Cabin is a Crew Closet with Hanger Space – Housed in the Upper Crew Closet is the Digital DVD Player – CD Player – XM Radio Panel – Switching for Mode Selection, Monitor Power, and Speaker Volume – Further Forward on the LH side is a Large Storage Cabinet with Hangars – Shelves for the Flight Deck Library

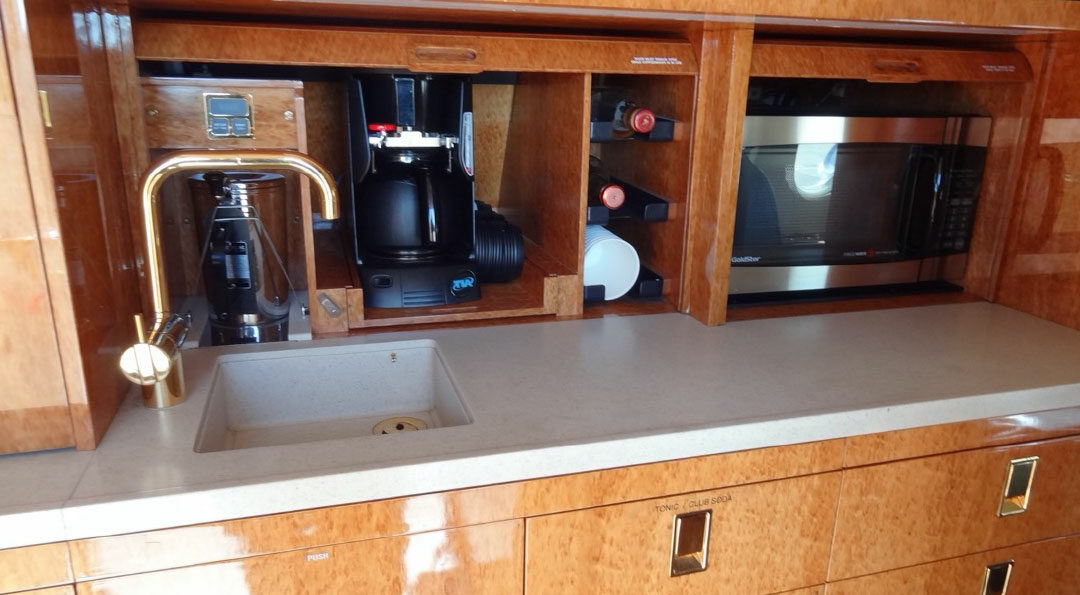

Located in the RH Forward Cabin is the Galley with Hot Cup – TIA Coffee Maker – Goldstar Microwave Oven – Sink with Hot/Cold Water – Storage for Crystal Cups – Two Ice Drawers – Soda Storage – 5 Additional Drawers for Storage – Galley Pop-out Work Surface – 115 Volt AC Outlet – Separating the Galley from the Passenger Cabin is a Hardwood Pocket Door

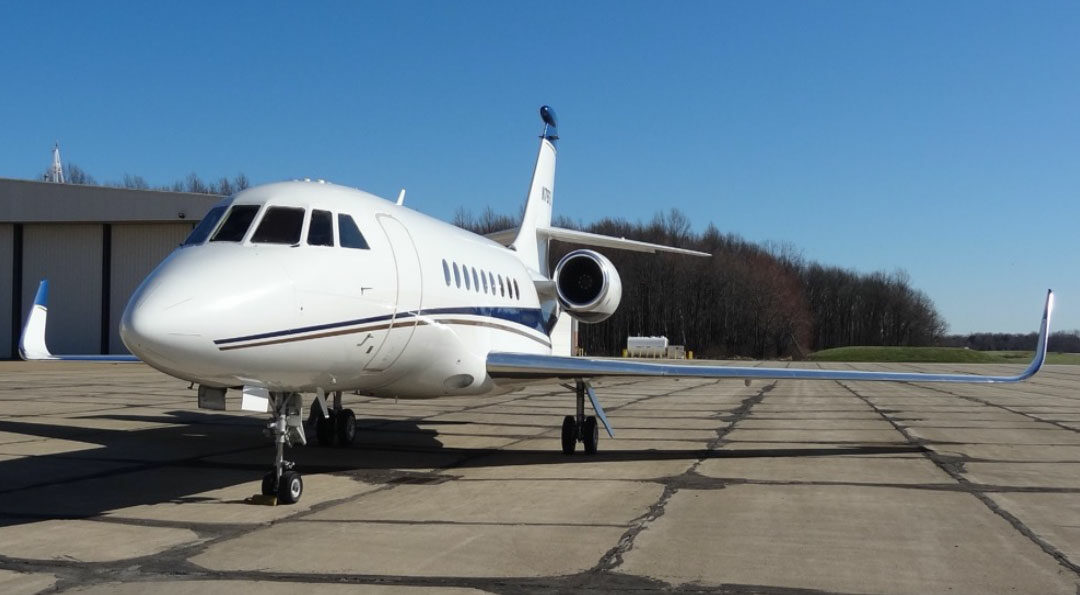

EXTERIOR
Custom Paint: Duncan Aviation March 13, 2009
Duncan Aviation, Battle Creek
Matterhorn White
Ocean Blue
Tibetan Gold
SERVICE BULLETINS
SB F2000 – 358 Rev 1 Wing Tank Modification (Dry Bay Mod) – 12/31/2009
SB F2000 – 302 Rev 3 APU – Firewall repair or replacement – 05/26/2011
SB F2000 – 186 – Increase in Maximum Structural Weights
SB F2000 – 325 – Navigation/FMS/V-Speeds database for optional Max Landing Weight
AIRCRAFT DATA AND MAINTENANCE STATUS
Certification and Entry into Service Date: 04/20/1999
Chapter 5 Time Limits/Maintenance Checks | C/W Date | C/W Hours | Next Due Date | Next Due Hour |
---|---|---|---|---|
12 Month / 800 Hour Inspection | 05/13/2020 | 4622.5 Hours | 05/13/2021 | 5422.5 Hours |
24 Month / 1600 Hour Inspection | 05/28/2019 | 4586.7 Hours | 05/13/2021 | 6186.7 Hours |
36 Month / 2400 Hour Inspection | 5/15/2020 | 4622.5 Hours | 05/13/2023 | 7022.5 Hours |
12 Month Inspection | 05/15/2020 | 4622.5 Hours | 05/13/2021 | |
24 Month Inspection | 05/28/2019 | 4588.7 Hours | 05/13/2021 | |
36 Month Inspection | 05/13/2020 | 4622.5 Hours | 05/13/2023 | |
1 B Inspection / 1600 Hours | 05/28/2019 | 4586.7 Hours | 6186.7 Hours | |
2 B Inspection / 3200 Hours | 05/28/2019 | 4586.7 Hours | 7786.7 Hours | |
1C Inspection – 72Months/3750 Landings | 06/02/2017 | 4444.2 Hours | 06/02/23 | 6771 Landings |
2C Inspection – 144 Months/7500 Landings | 05/27/2011 | 3565.1 Hours | 9938 Landings |
These specifications are presented as introductory information only. They do not constitute representations or warranties of any kind. Accordingly, purchaser should rely on your own inspection of this aircraft. This aircraft availability is subject to prior sale, and/or removal from market.
