2001 GULFSTREAM GV For Sale

Airframes & Engines

AIRFRAME
Total Time: 15,451.4 Hours
Landings: 5,919

2001 Completion & Entered Into Service

ENGINES
Rolls-Royce BR700-710A1-10

Engine #1
Serial Number: 11375
Total Time Since New: 14,452.9 Hours
Cycles Since New: 5,713

Engine #2
Serial Number: 11376
Total Time Since New: 15,311.7 Hours
Cycles Since New: 5,990

On Condition Engines
Engines Enrolled on Rolls-Royce CorporateCare

AUXILIARY POWER UNIT
Honeywell RE220 (GV)

Serial Number: P-240
Total Time: 11,664.0 Hours

APU Enrolled on Honeywell MSP Gold

Avionics & Equipment

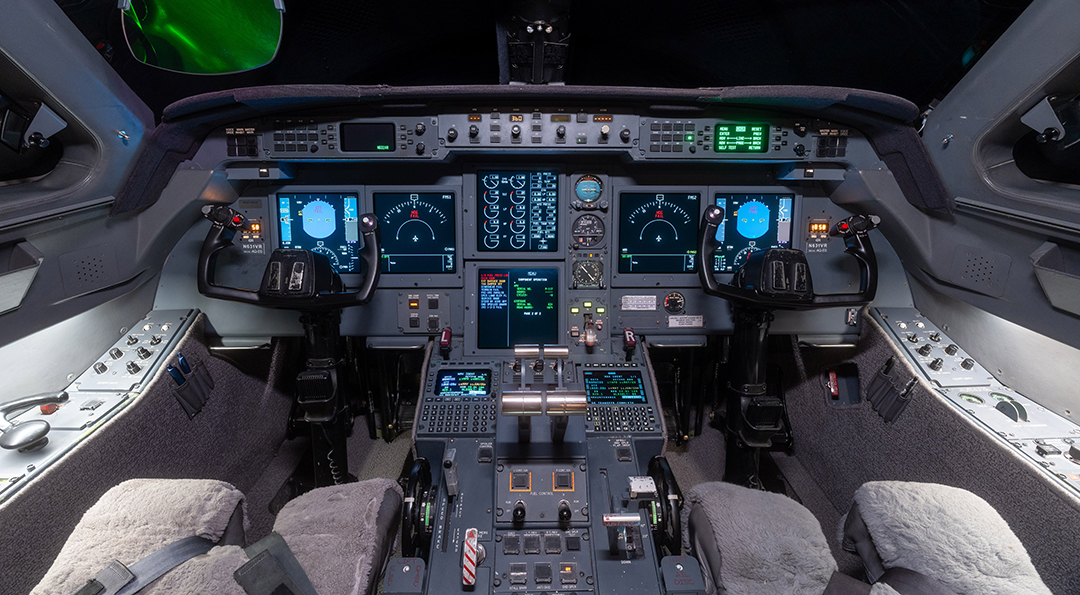

Honeywell Primus Elite Avionics Suite
Six Honeywell DU-885 LCD Displays Upgrade
Triple Honeywell NZ-2000 Flight Management System w/6.1
Honeywell SPZ-8500 Flight Director
Triple Honeywell Control Display Units
Triple Honeywell AZ-840 Micro Air Data Computers
Honeywell Heads Up Display (HUD)
Dual Collins VIR-432 Navigation Receivers
Triple Honeywell LASEREF IV IRU
Dual Honeywell GPS Receivers
Dual Collins DME-422 DME Transceivers
Dual Collins ADF-462 ADF Receivers
Dual Honeywell DC-884 Display Controllers
Triple Audio Control Panels
Triple Honeywell IC-800 Integrated Avionics Computers
Dual Collins RTU-4280 Radio Tuning Units
Dual Collins VHF-422C Comm. Transceivers
Dual Collins HF-9034A HF Comm. Transceivers
Third VHF Comm. Collins VHF-4000
Dual Honeywell RT-300 Radio Altimeters
Dual Collins TDR-94D Mode S Transponders
Artex C406-2 ELT
Honeywell Primus WU-880 Digital Weather Radar
L3 FA2100 Cockpit Voice Recorder
ACSS TCAS 2000 Traffic Collision Avoidance System
L3 FA2100 Flight Data Recorder
Honeywell MK V EGPWS w/RAAS
Honeywell DL950 Data Loader Upgrade
Honeywell MCS-7120/HD-710 SATCOM w/Swift Broadband
AlliedSignal AFIS w/Satellite Link

AVIONICS UPGRADES/CERTIFICATIONS/CAPABILITIES
FANS 1/A+ (CPDLC, ADS-C, AFN) Data Link Gulfstream STC
ADS-B Out Version 2 (DO-260B) ASC 214
SBAS (WAAS)/LPV
TCAS II Change 7.1
RVSM
VHF 8.33 MHz Spacing
406 MHz ELT
Electronic Charts & Maps
Class A TAWS
Runway Awareness Advisory System (RAAS)
Transponder Collins Flight ID

ADDITIONAL EQUIPMENT UPGRADES
ASC 110A Flight Data Recorder Part 135 Upgrade
Dual LED Wing Navigation Lights Upgrade
ASC 186B FMS 6.1 Software Upgrade
Third Honeywell FMS Upgrade
ASC 220A/B Horizontal Stabilizer Cove Panel Av-Dec Gaskets
LED Tail Position Light Upgrade
Precise Flight Pulselite Installation STC
Autothrotlles
Third Crewmember Jump Seat
Mx Ramp/Take Off/Landing 75,000 Lbs. ACS 064C
(2) Winslow Life Rafts
Cabin Manual Window Shades
115 Volt 60 Hz AC Outlets
XM Weather Receiver
Galley Warming Oven
Dual Magazine Rack
(2) TIA Coffee Makers
Microwave Oven
Forward Refreshment Center Coffee Maker & Ice Drawer
Aft Galley Sink
Galley Lighted Crystal Storage Racks
Galley Divided Ice Drawer

Interior & Exterior

ENTERTAINMENT/CONNECTIVITY
Honeywell MCS-7120/HD-710 SATCOM w/Swift Broadband
Gogo Aircell ATG-5000 High Speed Internet System
Satcom Direct Router (SDR)
Dual Samsung DVD Players
Rockwell Collins Genesys Airshow Map Display System
Airshow Flight Deck Controller
Aft Cabin Credenza Sidewall Video Monitor
Sidewall Individual Video Monitors
Audio/Video Jacks

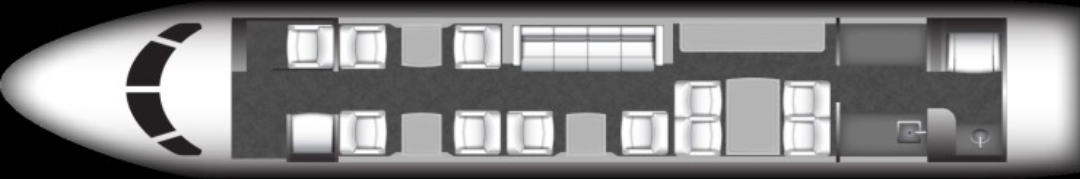

INTERIOR CONFIGURATION
14 Passenger Interior Configuration

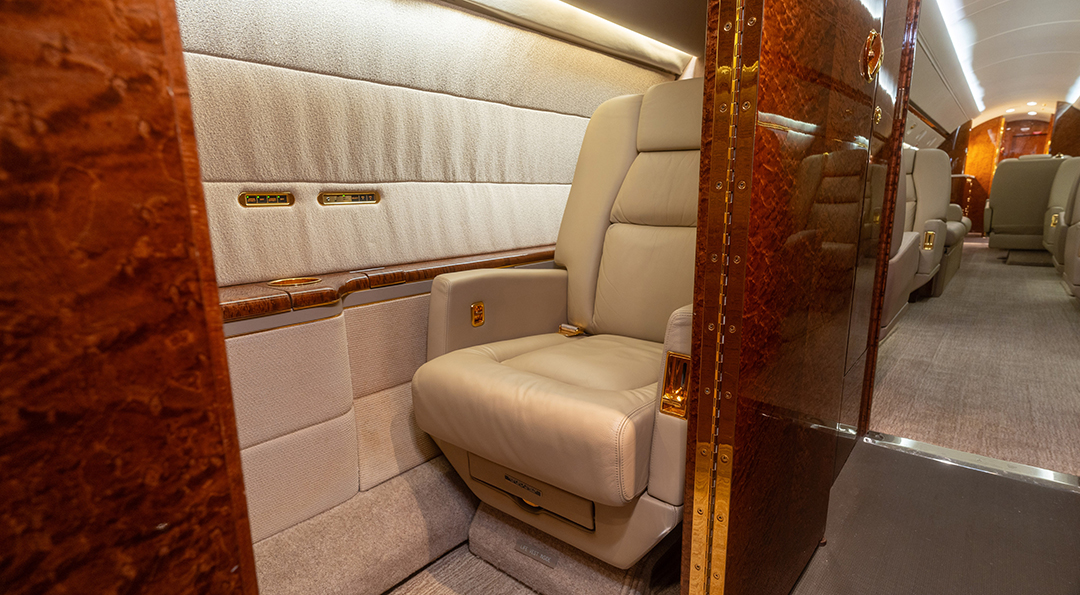

Forward Crew Rest Area

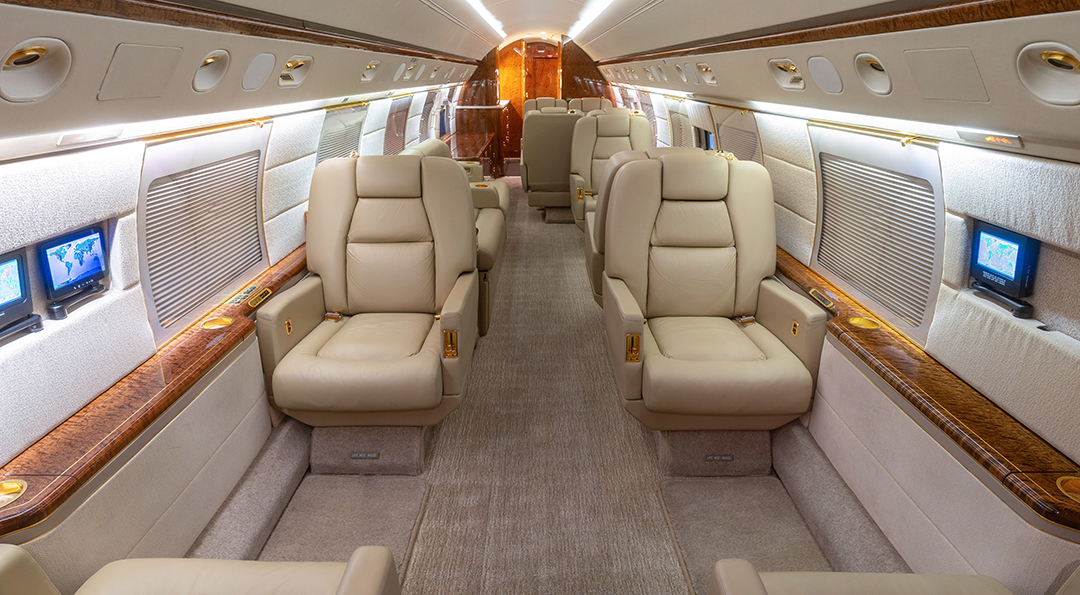

Forward Four Place Executive Club Seating

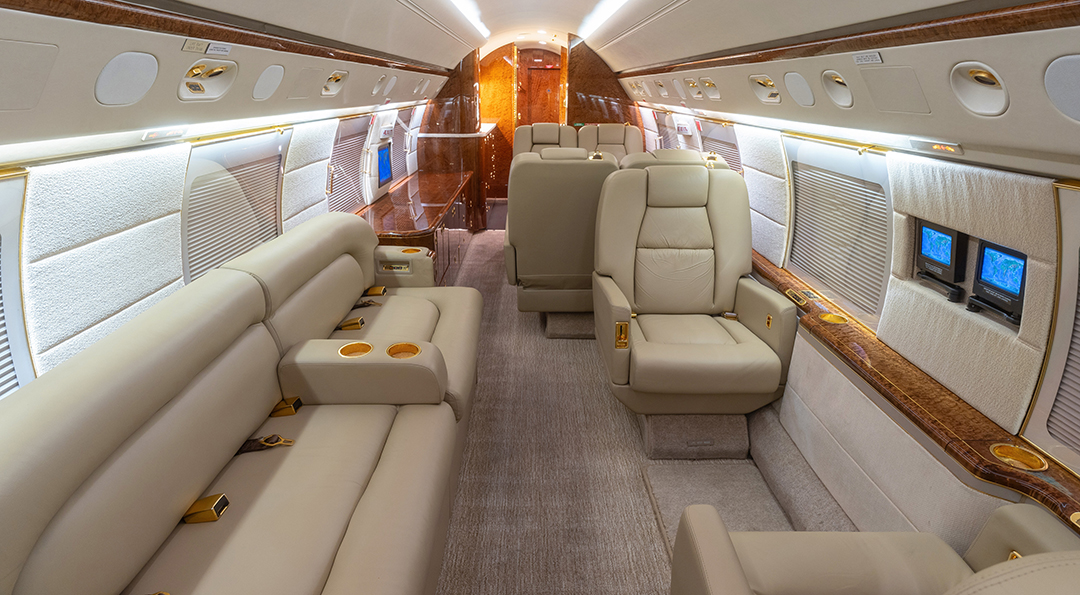

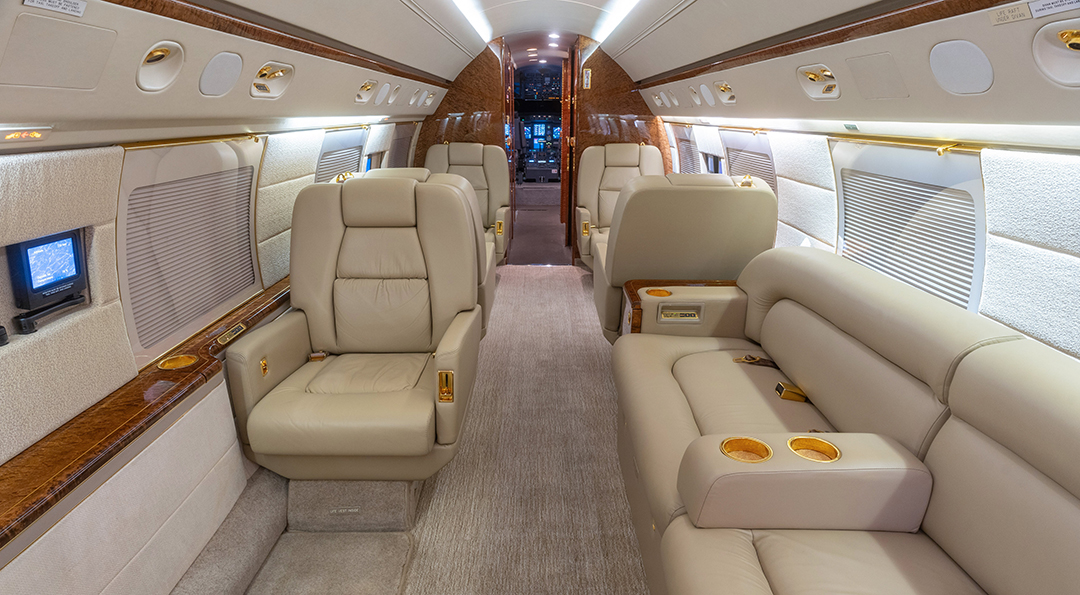

Mid Cabin Four Place Divan
Mid Cain Two Place Executive Club Seating
Executive Tables

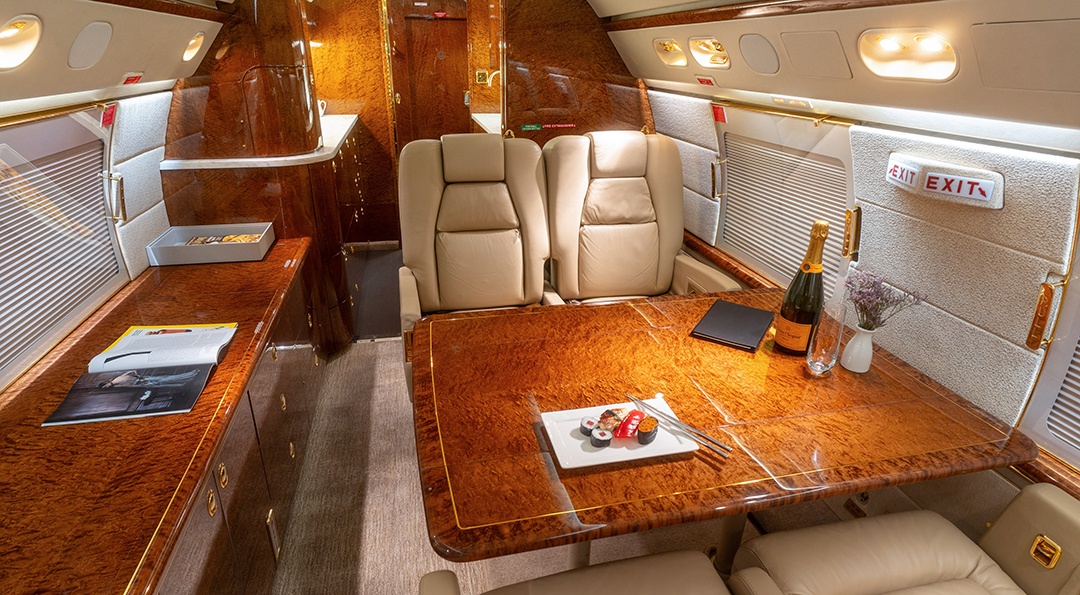

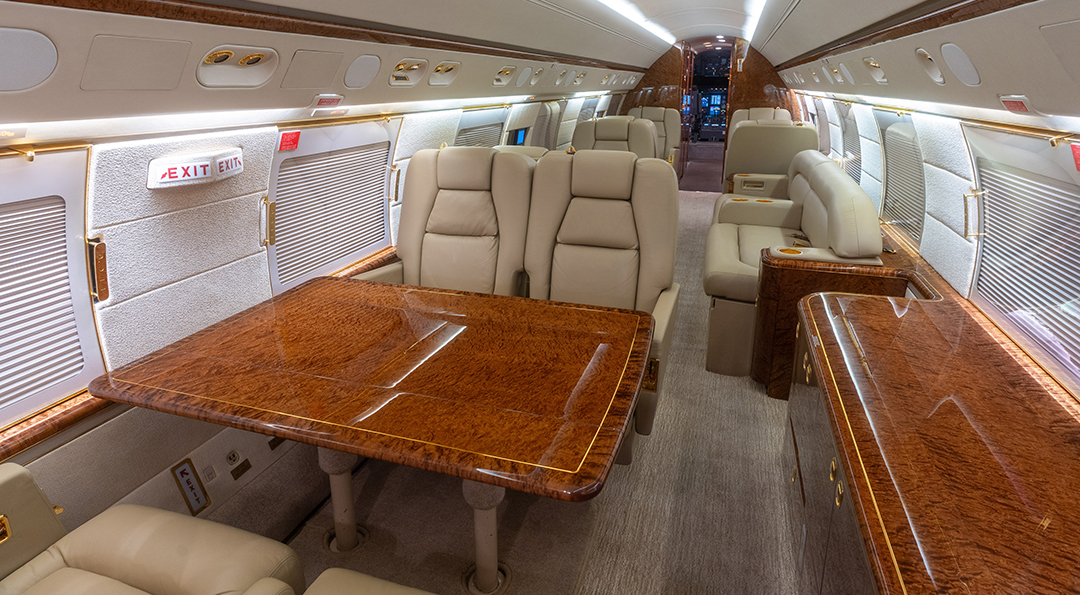

Aft Four Place Conference Group Seating & Conference Table
Aft Cabin Credenza
Forward Refreshment Center/Galley Annex

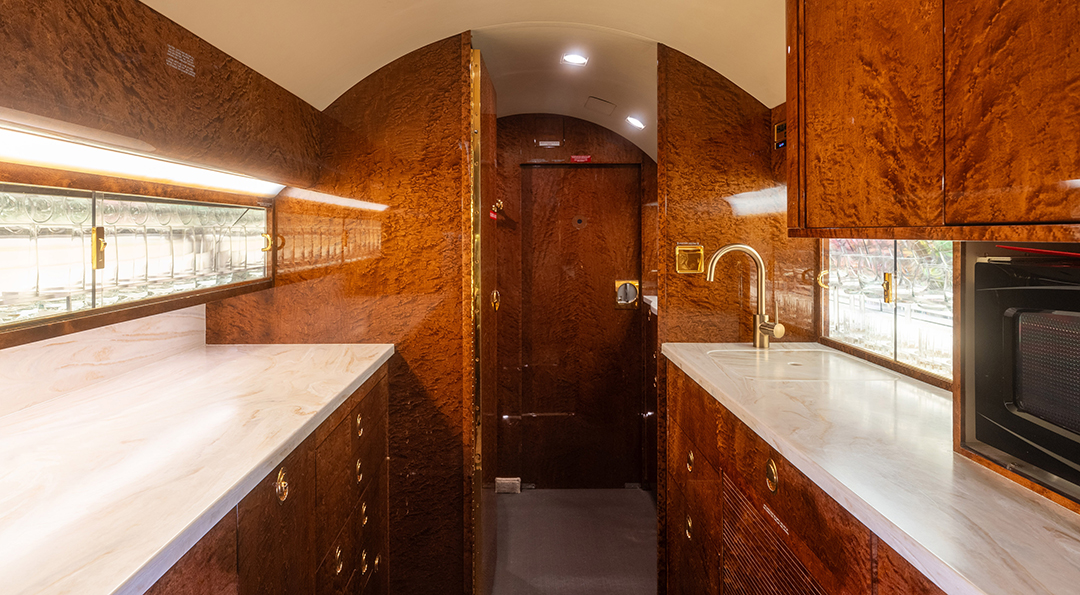

Dual Aft Well-Equipped Galleys w/ Galley to Cabin Curtain
Forward Vestibule Crew Lavatory w/Coat Rod
Full Aft Lavatory & Vanity
Large Aft Baggage
Birdseye Maple Veneer w/High Gloss Finish

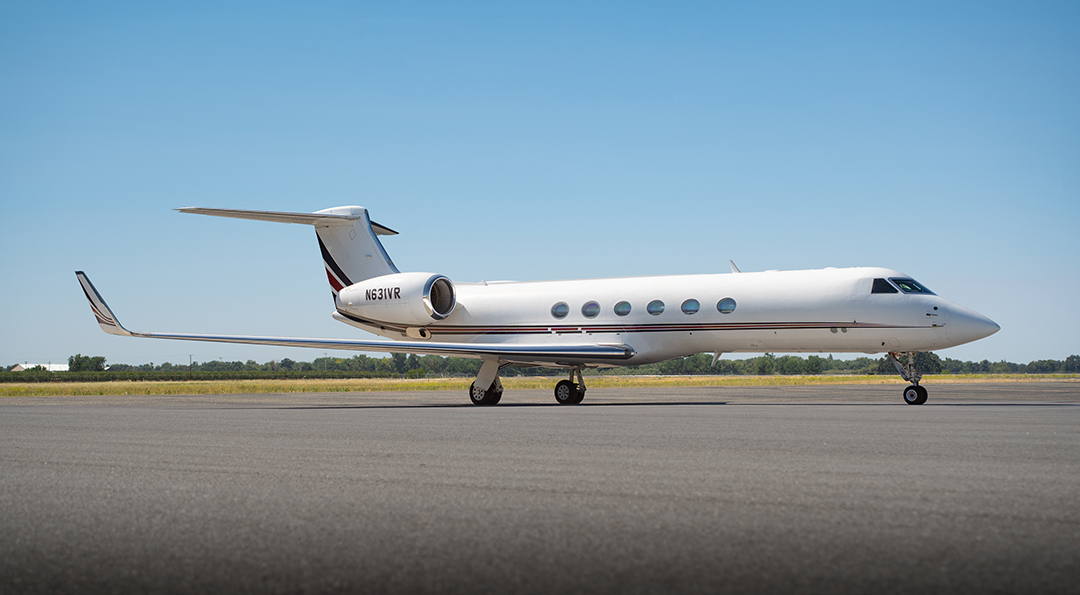

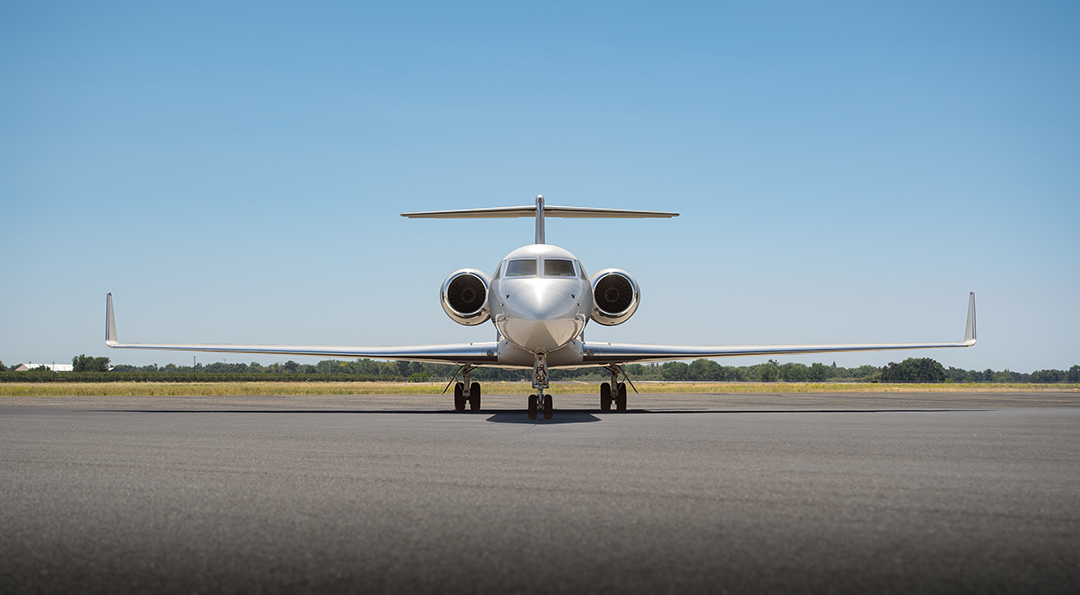

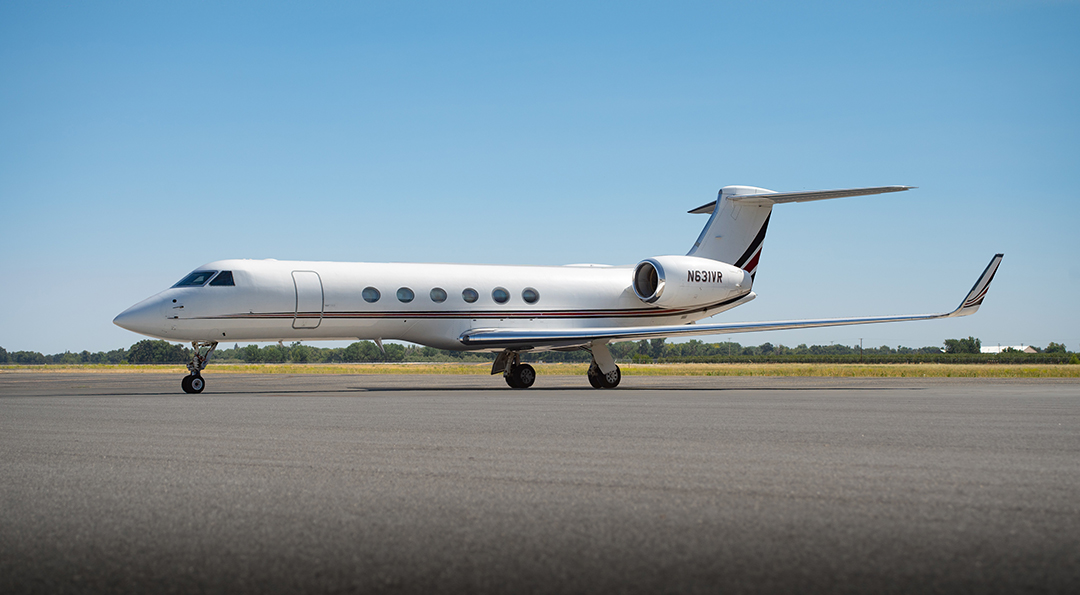

CUSTOM PAINT
Overall Matterhorn White
Charcoal & Raspberry Stripes
